MW

MW [31] is a constrained multi-objective test suite constructed in a similar fashion to CTP or WFG with 3 different distance functions and 3 local adjustment methods. Most problems are biobjective problems, except MW4, MW8 and MW14 which are scalable (\(m \geq 3\)).

They aim at replacing the CTP test suite by proposing more complex problems with up to 4 inequality constraints.

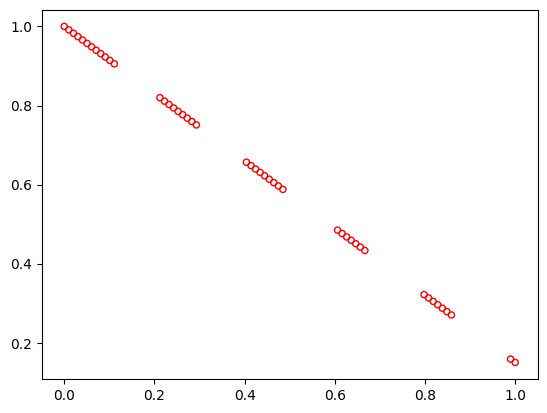

MW1

[3]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw1")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_4_0.svg

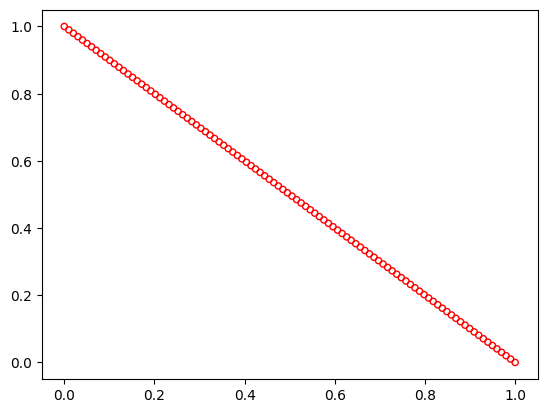

MW2

[4]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw2")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_6_0.svg

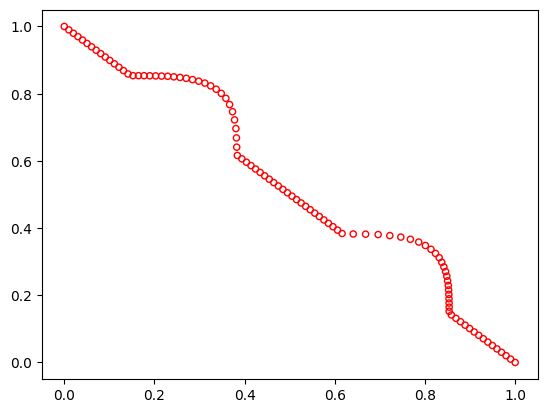

MW3

[5]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw3")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_8_0.svg

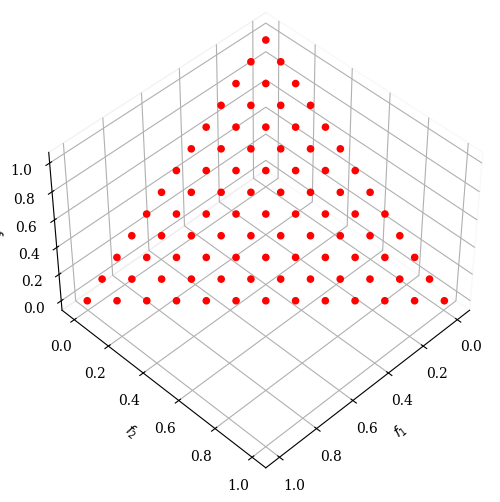

MW4

[11]:
from pymoo.factory import get_problem, get_reference_directions, get_visualization

ref_dirs = get_reference_directions("das-dennis", 3, n_partitions=12)
pf = get_problem("mw4").pareto_front(ref_dirs)
get_visualization("scatter", angle=(45,45)).add(pf).show()
../../_images/problems_constrained_mw_10_0.svg

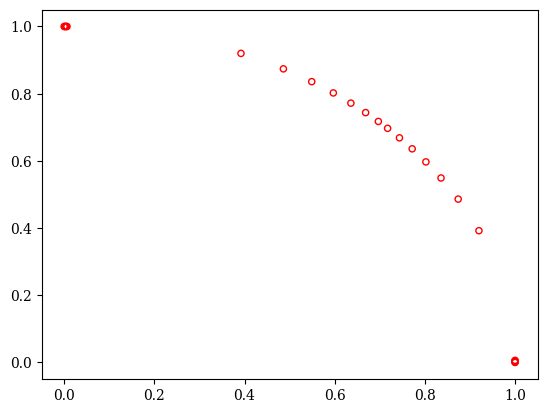

MW5

[3]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw5")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_12_0.svg

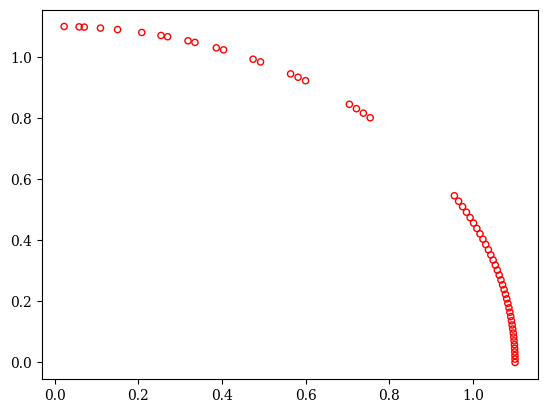

MW6

[1]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw6")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_14_0.svg

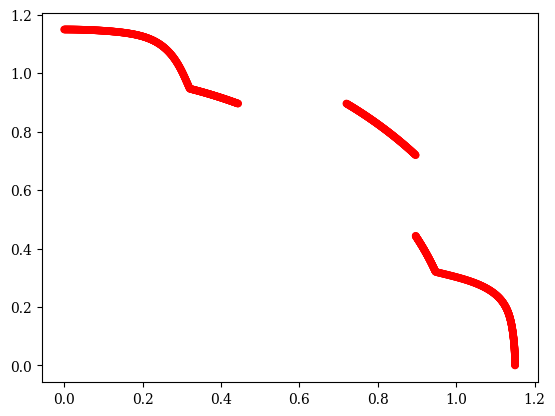

MW7

[2]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw7")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_16_0.svg

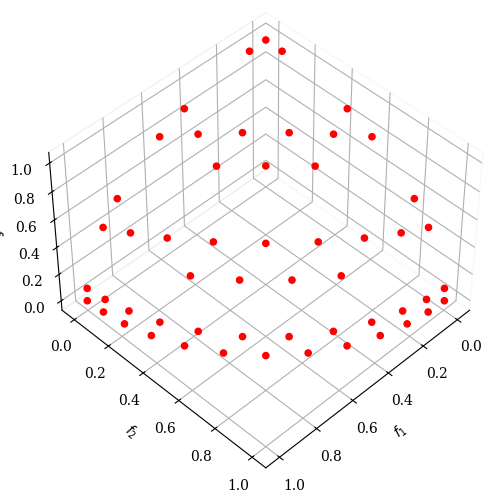

MW8

[2]:
from pymoo.factory import get_problem, get_reference_directions, get_visualization

ref_dirs = get_reference_directions("das-dennis", 3, n_partitions=15)

pf = get_problem("mw8").pareto_front(ref_dirs)
get_visualization("scatter", angle=(45,45)).add(pf).show()
../../_images/problems_constrained_mw_18_0.svg

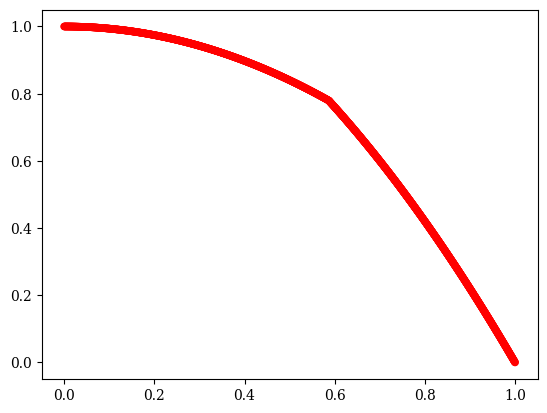

MW9

[3]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw9")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_20_0.svg

MW10

[4]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw10")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_22_0.svg

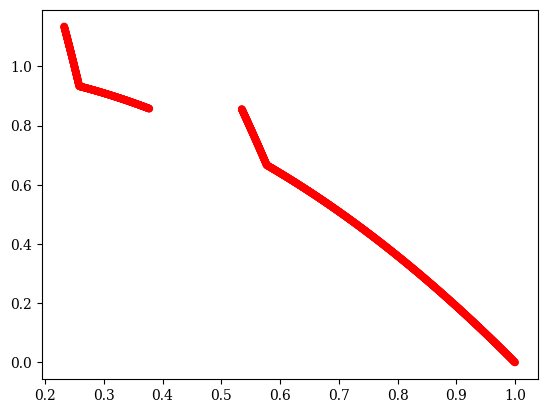

MW11

[5]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw11")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_24_0.svg

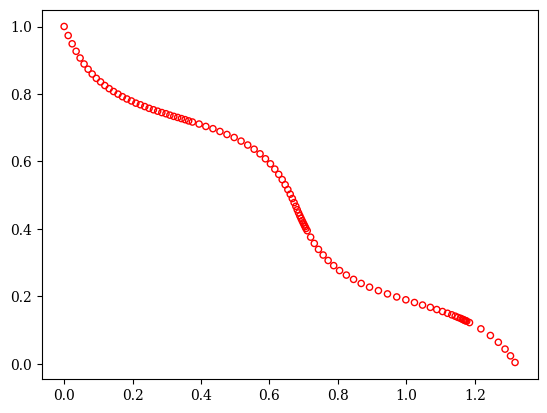

MW12

[6]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw12")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_26_0.svg

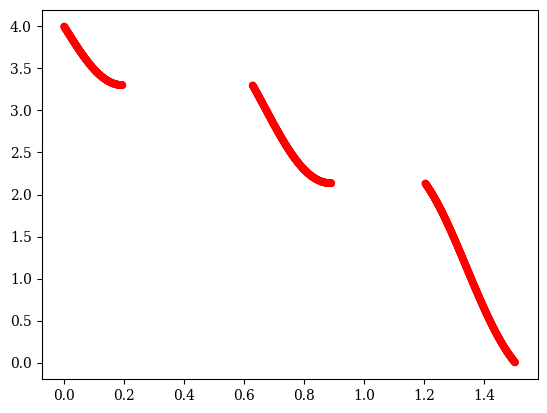

MW13

[7]:
from pymoo.factory import get_problem
from pymoo.util.plotting import plot

problem = get_problem("mw13")
plot(problem.pareto_front(), no_fill=True)
../../_images/problems_constrained_mw_28_0.svg

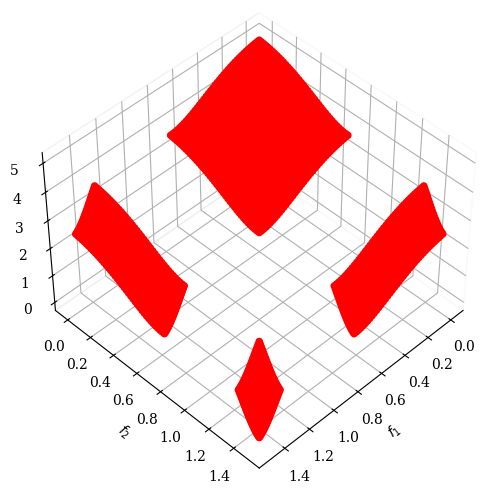

MW14

[10]:
from pymoo.factory import get_problem, get_visualization

pf = get_problem("mw14").pareto_front()
get_visualization("scatter", angle=(45,45)).add(pf).show()
../../_images/problems_constrained_mw_30_0.svg

Python implementation by cyrilpic based on the original C++ code.
