Survival

Rank and Crowding

The original survival strategy proposed in NSGA-II [25] ranks solutions in fronts by dominance criterion and uses a diversity metric denoted crowding distances to sort individuals in each front. This is used as criterion to compare individuals in elitist parent selection schemes and to truncate the population in the survival selection stage of algorithms.

Variants of the original algorithm have been proposed in the literature to address different performance aspects. Therefore the class RankAndCrowding from pymoo is a generalization of NSGA-II’s survival in which several crowding metrics can be used. Some are already implemented and can be parsed as strings in the crowding_func argument, while others might be defined from scratch and parsed as callables. The ones available are:

• Crowding Distance (‘cd’): Proposed by Deb et al. [25] in NSGA-II.

• Pruning Crowding Distance (‘pruning-cd’ or ‘pcd’): Proposed by Kukkonen & Deb [42], it recursively recalculates crowding distances as removes individuals from a population to improve diversity.

• M-Nearest Neighbors (‘mnn’): Proposed by Kukkonen & Deb [43] in an extension of GDE3 to many-objective problems.

• 2-Nearest Neighbors (‘2nn’): Also proposed by Kukkonen & Deb [43], it is a variant of M-Nearest Neighbors in which the number of neighbors is two.

• Crowding Entropy (‘ce’): Proposed by Wang et al. [44] it considers the relative position of a solution between its neighors.

We encourage users to try crowding_func='pcd' for two-objective problems and crowding_func='mnn' for problems with more than two objectives.

If callable, it has the form fun(F, filter_out_duplicates=None, n_remove=None, **kwargs) in which F (n, m) and must return metrics in a (n,) array.

The ConstrRankAndCrowding class has the constraint handling approach proposed by Kukkonen, S. & Lampinen, J. [45] implemented in which solutions are also sorted in constraint violations space.

In the following examples the code for plotting was omitted.

from pymoo.algorithms.moo.nsga2 import NSGA2
from pymoo.operators.survival.rank_and_crowding import RankAndCrowding
from pymoo.problems import get_problem
from pymoo.optimize import minimize
from plots import plot_pairs_2d, plot_pairs_3d

# Problem definition Truss-2d - a two-objective problem
problem = get_problem("truss2d")

# Algorithms
nsga2 = NSGA2(70, survival=RankAndCrowding(crowding_func="cd"))
nsga2_p = NSGA2(70, survival=RankAndCrowding(crowding_func="pcd"))

# Minimization results
res_nsga2 = minimize(
    problem,
    nsga2,
    ('n_gen', 200),
    seed=12,
)

# Minimization results
res_nsga2_p = minimize(
    problem,
    nsga2_p,
    ('n_gen', 200),
    seed=12,
)

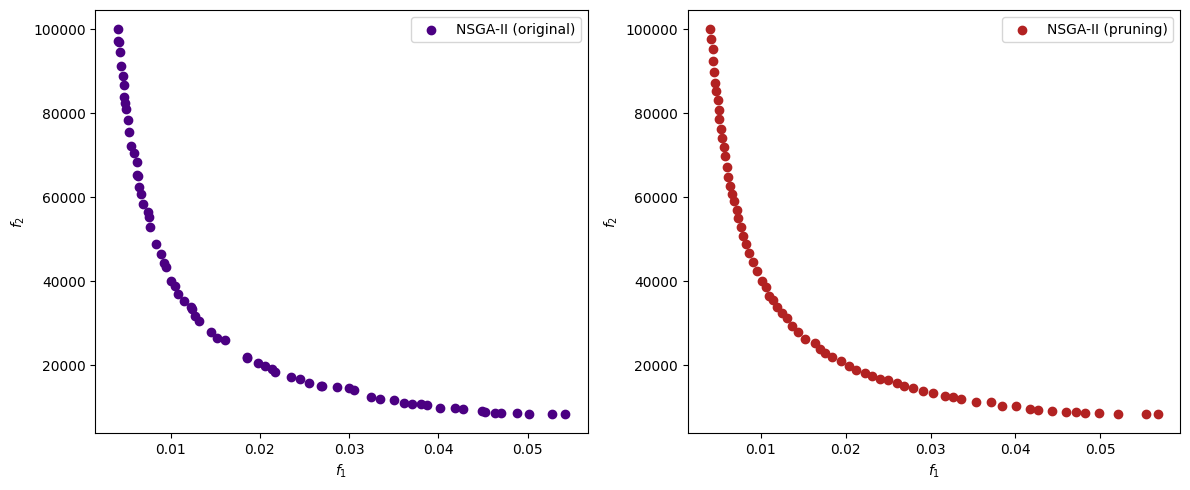

plot_pairs_2d(
    ("NSGA-II (original)", res_nsga2.F),
    ("NSGA-II (pruning)", res_nsga2_p.F),
    figsize=[12, 5],
    dpi=100,
)
